 CALZONI    D

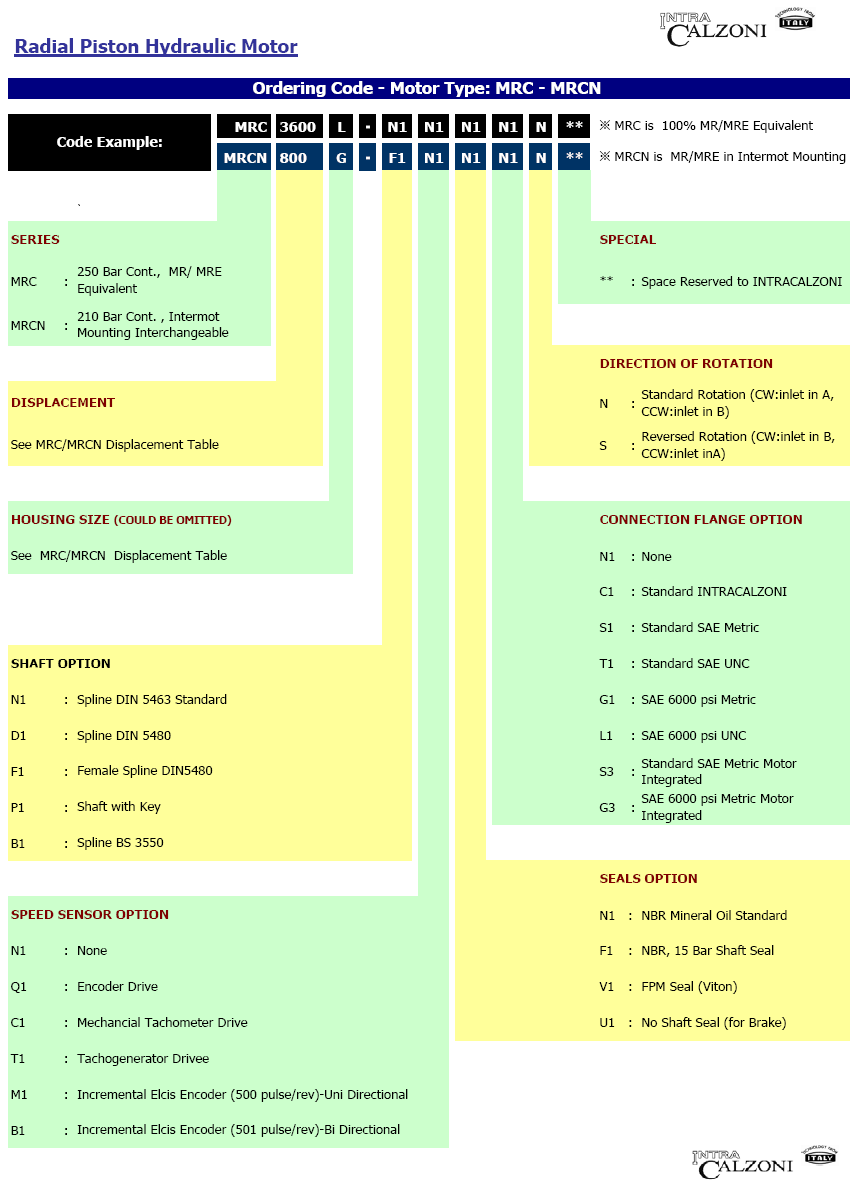

Fixed Displacement Motors          Ordering Code

Trademark/Plant 　

Main Characteristics / Type

MRCN Series

MRC Series

      Intra Calzoni LHST Motors

　

　

Peak Pressure

250 bar

300 bar

Max. Working Pressure

210 bar

250 bar

　

Continuous Working Pressure

210 bar

250 bar

Max. A+B Pressure

300 bar

350 bar

Max. Case Drain Pressure

5 bar or 15 bar with high pressure shaft seal

Starting Torque

from 90% to 95% of theoretical

Volumetric Efficiency

up to 98%

     Radial Piston Hydraulic Motors

　

Total Efficiency

up to 96%

Resistence to thermal shocks

Temperature Variation= 80 °C (176 °F)
　

    MRCN series

Model

Housing

Size

Displ.

Max.

Pressure

Max.

Speed (a*)

Specific

Torque

Max.

Power( a*)

Weight

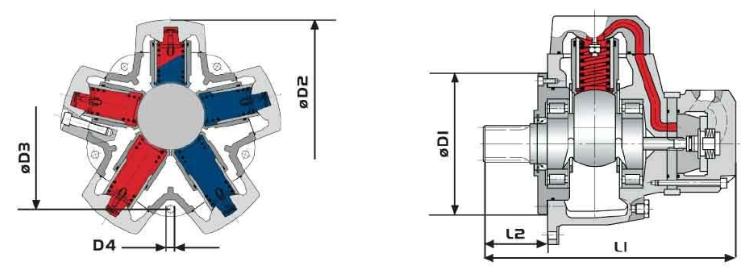

L1

L2

ØD1

ØD2

ØD3

ØD4

(bar)

(c.c.)

Count.

Int.

( rpm )

N.m / bar

( kw )

( kg )

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

MRCN-200

 E 201.1 210 250 430 3.20 26 48.0 277.5 77.0 190.0 307.0 210.0 12.5

MRCN-250

 E 249.3 210 250 430 3.97 32

MRCN-300

 E 299.2 210 250 410 4.89 37

MRCN-350

 E 349.1 210 250 390 5.55 40

MRCN-400L

 E 366.2 210 250 380 5.82 41

MRCN-400K

 F 380.5 210 250 380 5.82 41 48.0 277.5 77.0 230.0 307.0 254.0 12.5

MRCN-400

 F 398.1 210 250 370 6.34 44 50.0 296.0 82.0 230.0 328.0 254.0 12.5

MRCN-450

 F 449.2 210 250 450 7.16 50 62.0 328.5 90.0 230.0 381.0 254.0 16.0

MRCN-500

 F 502.1 210 250 430 7.99 53

MRCN-600

 F 607.7 210 250 410 9.67 61

MRCN-700

 F 692.7 210 250 390 11.03 66

MRCN-800

 G 808.2 210 250 350 12.86 76 115.0 367.0 103.5 256.0 444.0 300.0 17.0

MRCN-1000

 G 977.2 210 250 290 15.55 76

MRCN-1100

 G 1096.8 210 250 290 17.46 76

MRCN-1200

 G 1201.1 210 250 250 19.12 84

(a*): Maximum value Obtainable with flushing (b*): Intermot Mounting Interchangeable (c*): Larger Displacements are available .Pls consult INTRACALZONI Hydraulics

The specified data are for product description purposes only and must not be interpreted as warranted characteristic in a legal sense. All rights reserved. Subject to revision.

  MRC series

Model

 Housing Size

Displ.

Max.

Pressure

Max.

Speed (a*)

Specific

Torque

Max.

Power (a*)

Weight

L1

L2

ØD1

ØD2

ØD3

ØD4

(bar)

(c.c.)

Count.

Int.

( rpm )

 N.m / bar

( kw )

( kg )

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

MRC-250

 D 249.3 250 300 650 4.00 35 52 323.0 81.0 175.0 328.0 232.0 11.0

MRC-300

 D 307.5 250 300 650 4.84 39 52

MRC-330

 D 332.4 250 300 650 5.28 43 52

MRC-350

 D 349.1 250 300 650 5.60 45 52

MRC 400

 D 398.1 250 300 480 6.34 50 52

MRC-500

 F 498.6 250 300 500 7.90 64 98 406.0 101.0 220.0 405.0 290.0 13.0

MRC-600

 F 611.2 250 300 450 9.70 68 98

MRC-650

 F 659.5 250 300 440 10.46 70 98

MRC-700

 F 707.7 250 300 430 11.26 72 98

MRC-800

 F 804.3 250 300 430 12.80 77 98

MRC 600I  (b*)

 G 611.2 250 300 450 9.70 70 98 406.0 101.0 256.0 405.0 300.0 14.0

MRC 700I  (b*)

 G 707.7 250 300 440 11.26 72 98

MRC 800I  (b*)

 G 804.3 250 300 430 12.80 77 98

MRC-1000

 G 1,016.1 250 300 350 16.20 80 140 445.0 117.0 250.0 470.0 330.0 15.0

MRC-1100

 G 1,125.8 250 300 330 17.93 88 140

MRC-1200

 G 1,237.1 250 300 300 19.70 94 140

MRC-1400

 G 1,369.5 250 300 270 21.81 103 140

MRC-1600

 H 1,608.1 250 300 230 25.60 110 227 503.0 133.0 290.0 558.0 380.0 17.0

MRC-1800

 H 1,809.6 250 300 230 28.80 121 227

MRC-2000

 H 2,010.2 250 300 230 32.00 135 227

MRC-2400

 I 2,393.1 250 300 200 38.11 140 325 617.3 154.3 335.0 642.0 440.0 19.0

MRC-2800

 I 2,792.1 250 300 180 44.46 150 325

MRC-3100

 I 3,103.7 250 300 180 49.92 153 325

MRC-3600

 L 3,636.8 250 300 170 57.90 157 508 700.4 209.5 400.0 756.0 540.0 23.0

MRC-4500

 L 4,502.7 250 300 160 71.70 166

MRC-5400

 L 5,401.2 250 300 150 86.01 169 550

MRC-6500

 M 6,504.1 250 300 130 103.57 240 800 796.0 230.0 450.0 864.0 600.0 25.0

MRC-7000

 M 6,995.0 250 300 130 111.39 250

MRC-8500

 M 8,525.6 250 300 120 145 290

MRC-9000(c*)

 N 9005.5 250 300 130 157.0 370 　 　 　 　 　 　 　

MRC-99000 (c*)

 N 99039.0 250 300 120 157.7 300 920 See Drawing & Spec.Table

MRC-10800 (c*)

 N 10800 250 300 110 172.0 310 　 　 　 　 　 　 　

(a*): Maximum value Obtainable with flushing (b*): Intermot Mounting Interchangeable (c*): Larger Displacements are available .Pls consult INTRACALZONI Hydraulics

The specified data are for product description purposes only and must not be interpreted as warranted characteristic in a legal sense. All rights reserved. Subject to revision.

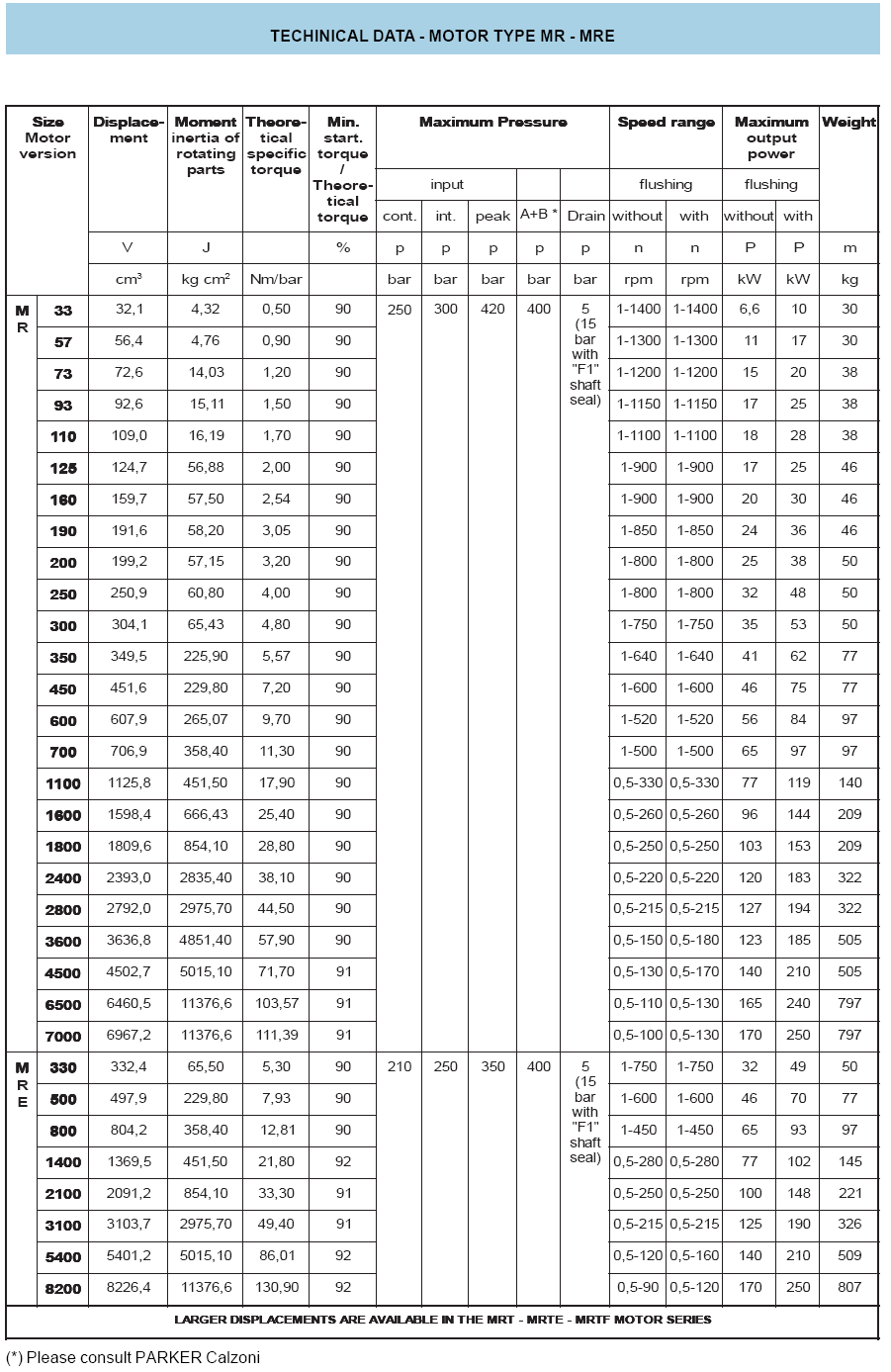

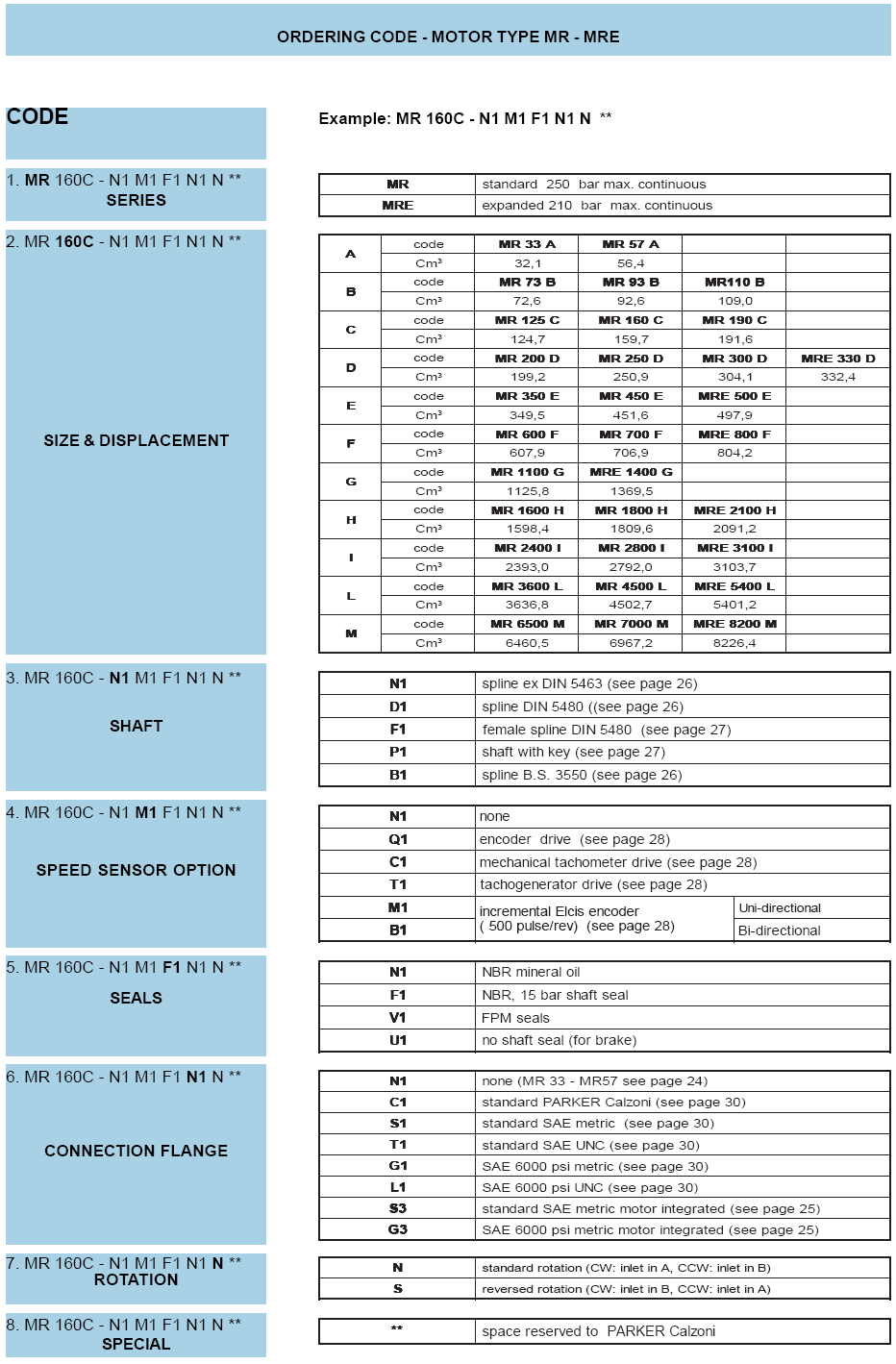

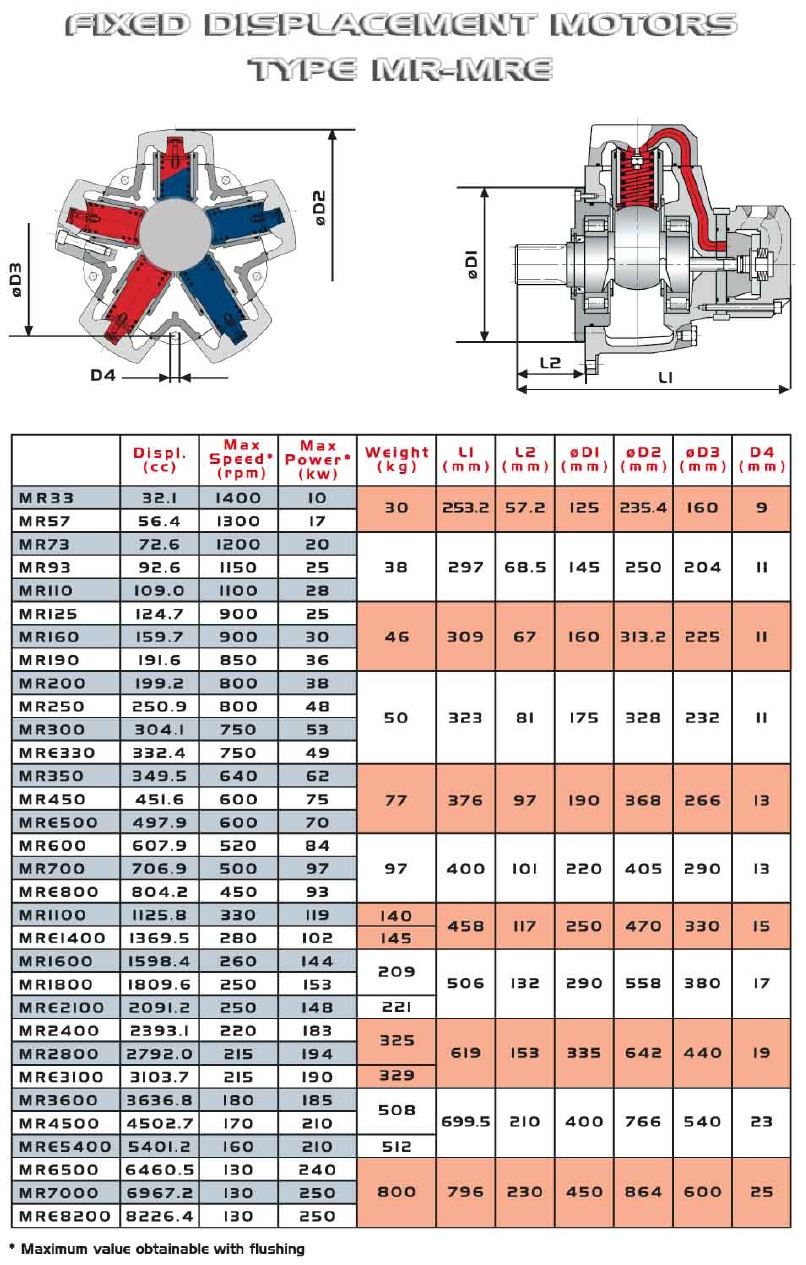

   MR-MRE series

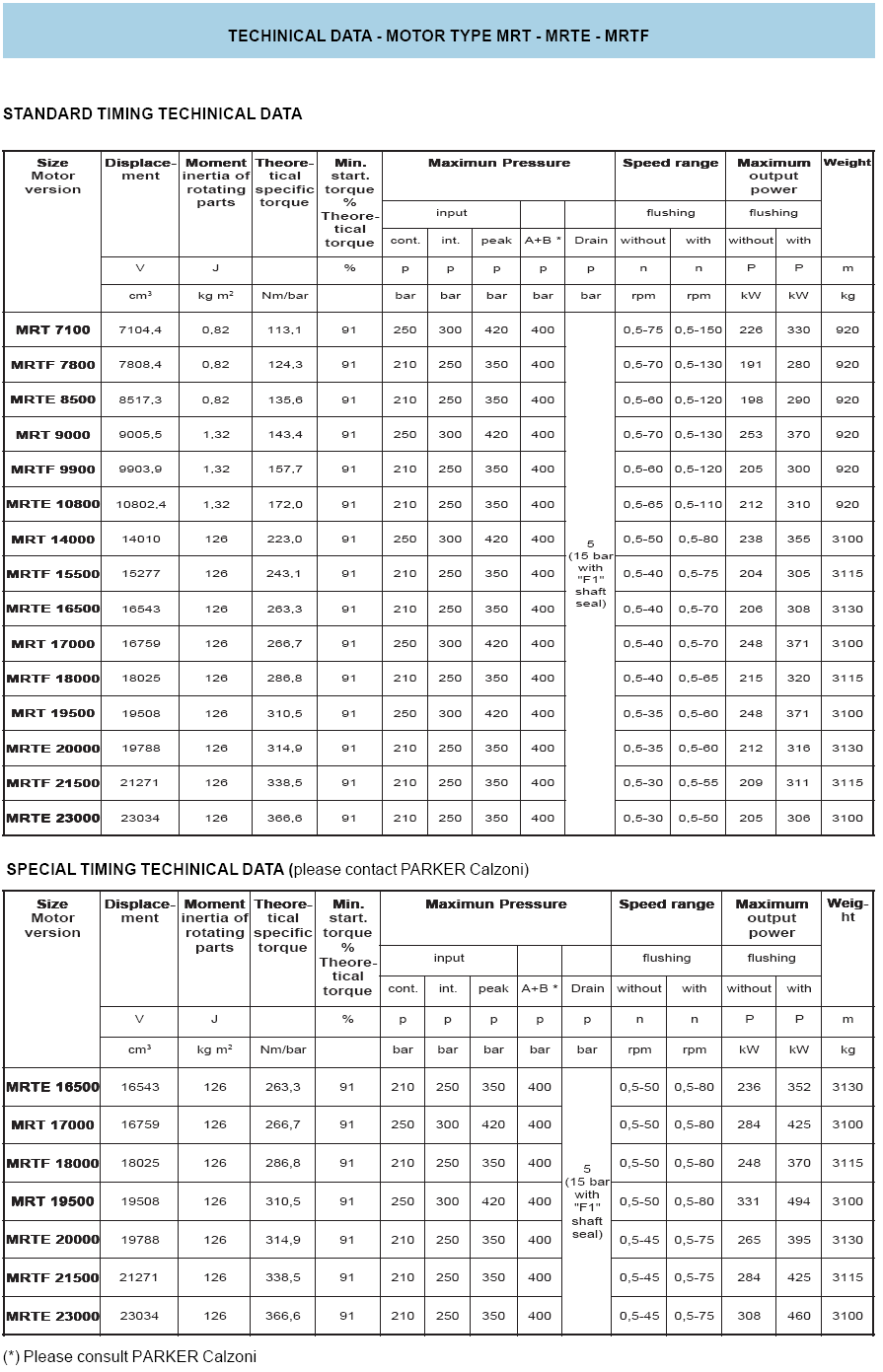

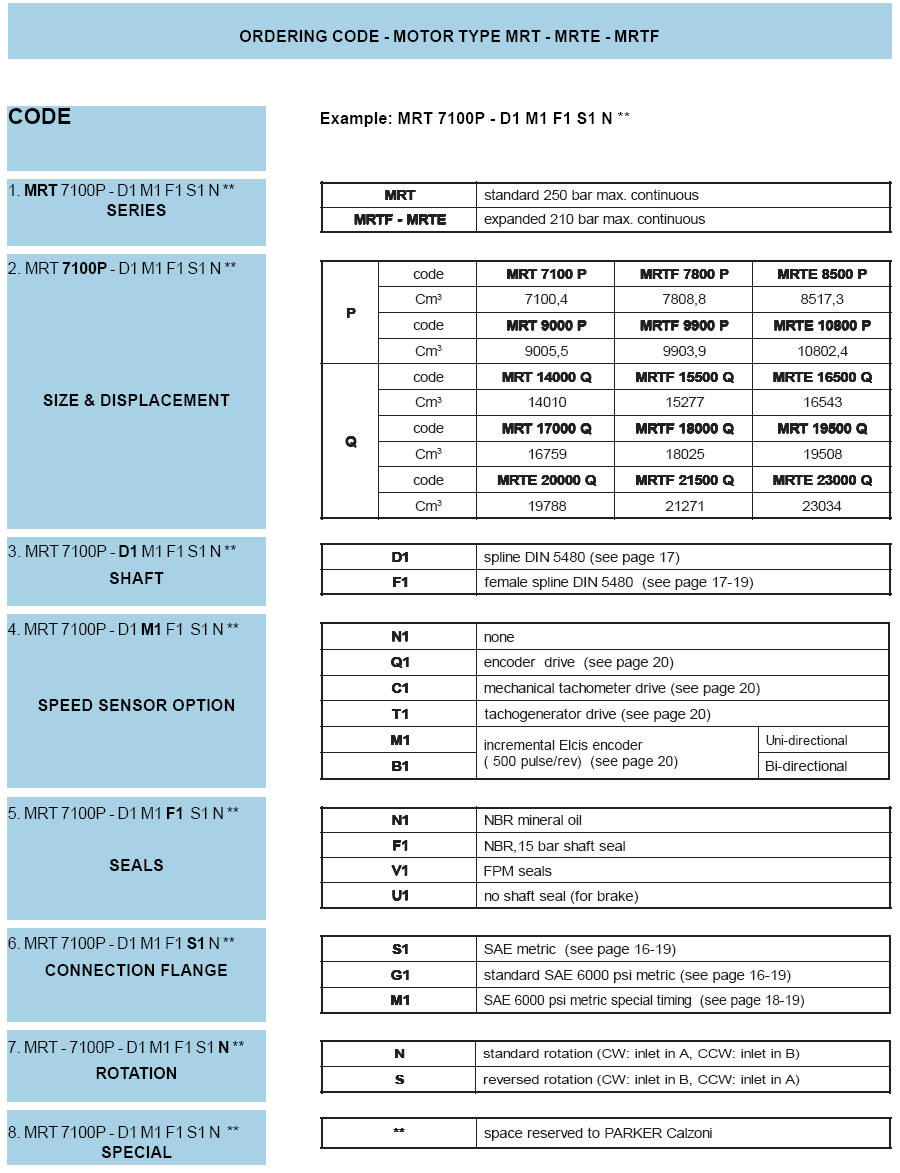

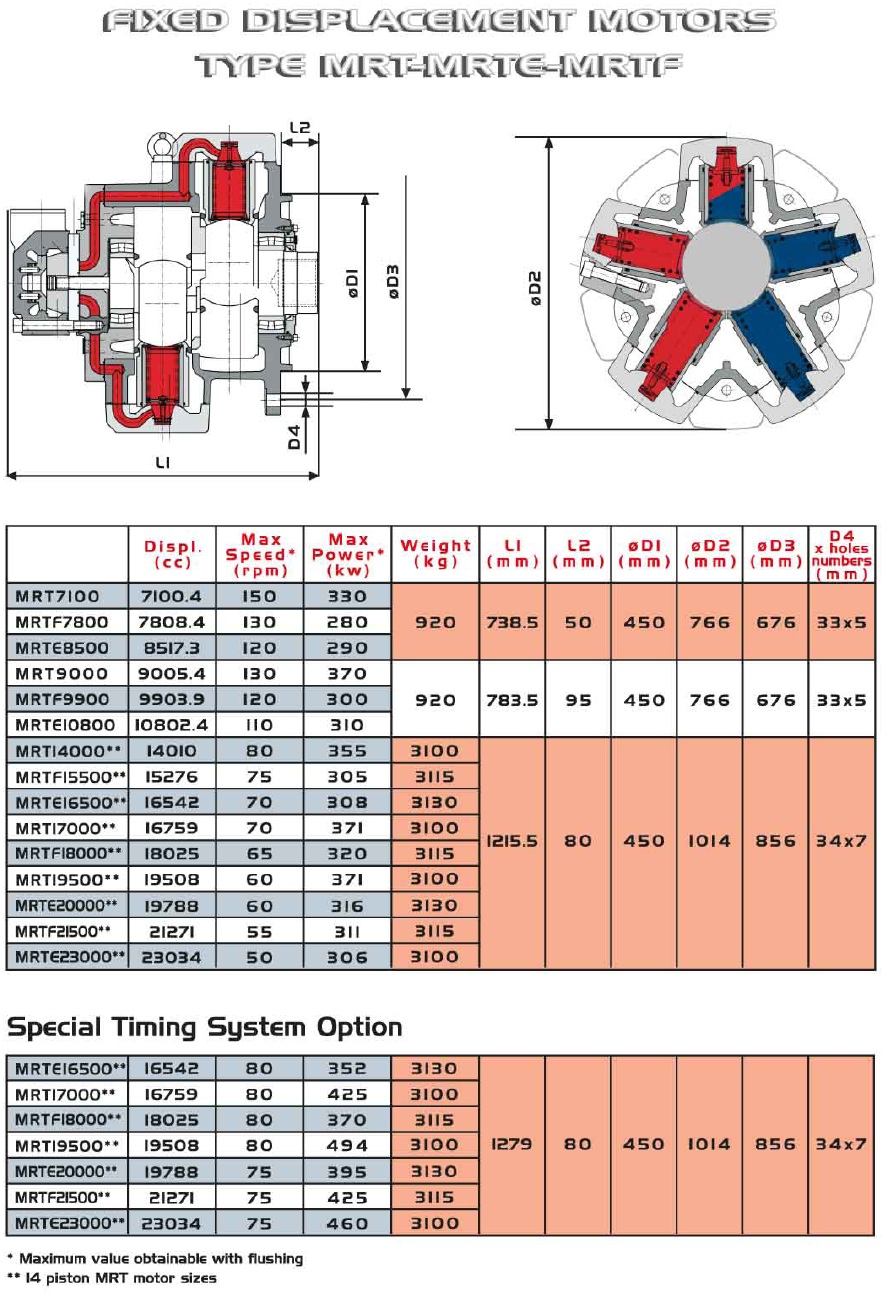

   MRT-MRTE-MRTF series
　

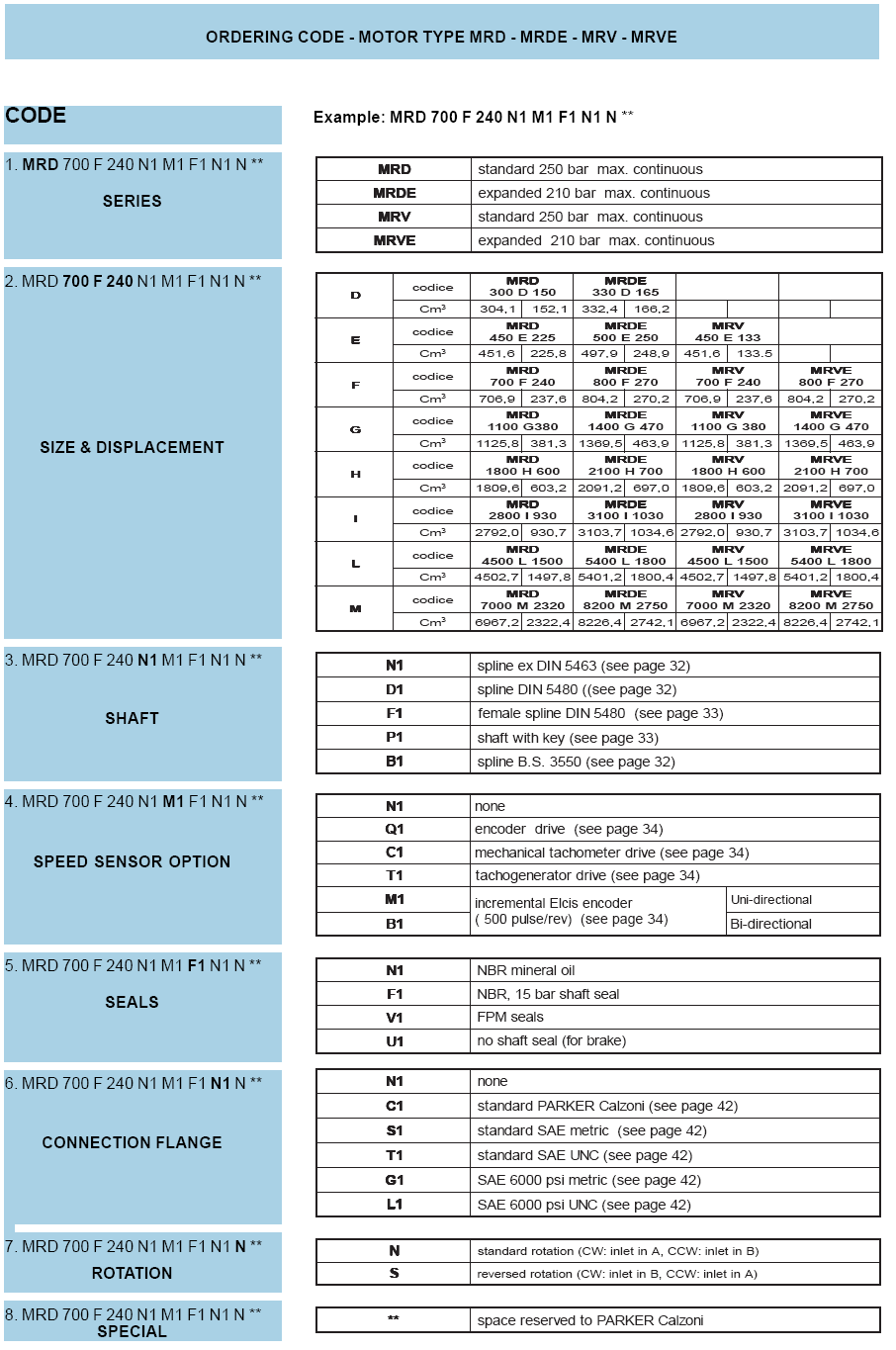

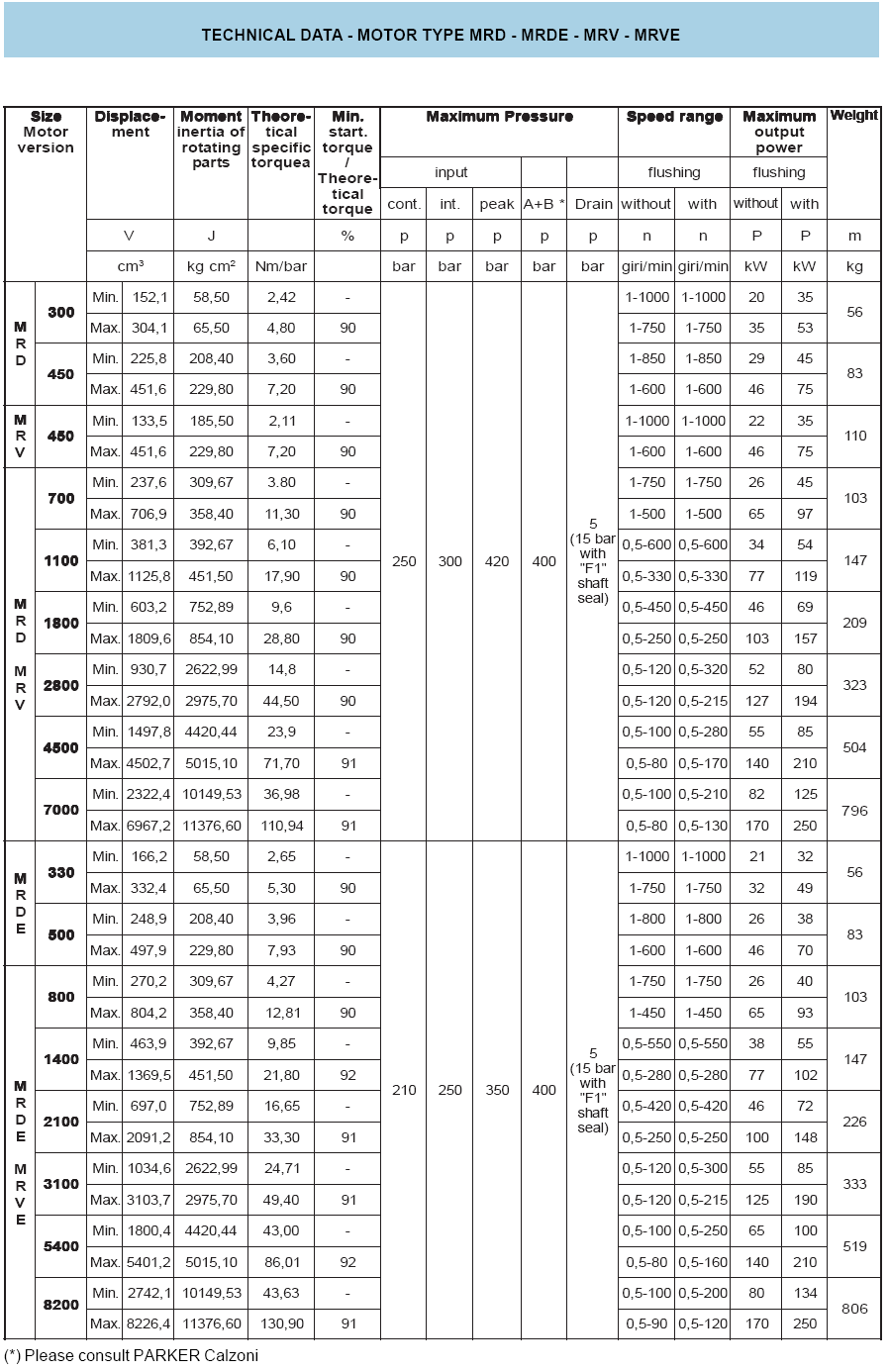

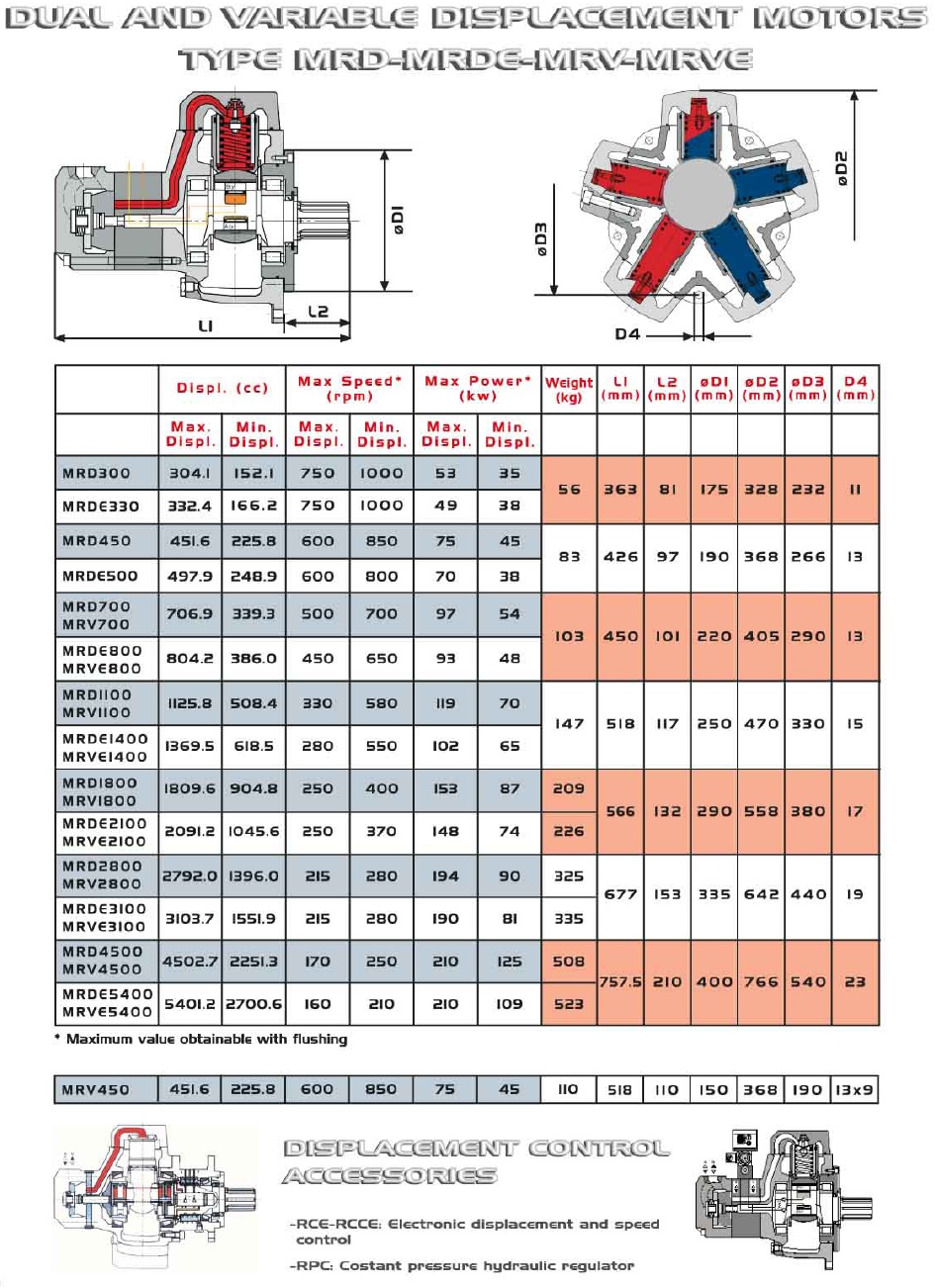

   MRD-MRDE-MRV-MRVE series
